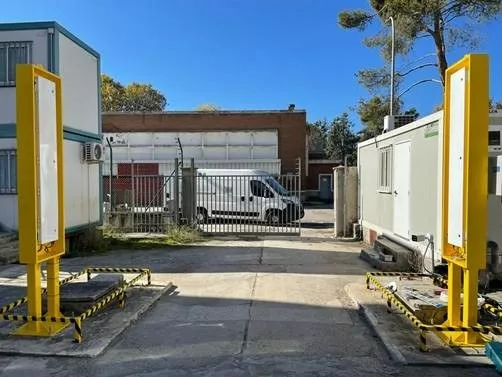

Guardian™ 50L radiation portal monitor, trusted at scrap yards and waste management operations worldwide, detects gamma radiation sources concealed in objects. This drive-through design supports the screening of passenger vehicles and trucks with maximum sensitivity.

Guardian 50L, Radiation Portal Monitor, RPM

Guardian 50L - Radiation Portal Monitor

Features

  • High sensitivity gamma detection

  • Notifications reported directly to the on-site operator for rapid response to alerts

  • Easy-to-use, built-in user interface, running on major browsers

  • Convenient wireless communication to smartphones, tablets, or laptops

Physical Specifications

  • Operating Configuration: Drive-through monitor
  • Number of Gamma Detectors: 2 detectors; 1 per pillar
  • Gamma Detector Material: Polyvinyltoluene (PVT) plastic scintillator
  • Panel External Dimensions: 60 in L x 10 in W x 2.5 in D (152.4 cm L x 25.4 cm W x 6.4 cm D)
  • Panel Weight: 125 lbs (57 kg)

Performance Specification

  • Gamma False Alarm Rate: Less than 1 in 1,000 passages

Operation

  • Inspection Speed: 5 mph (8 km/h) nominal
  • Ports: Ethernet, RS485, Serial

Environment / Safety

  • Temperature: -4 °F to 140 °F (-20 °C to 60 °C )
  • Humidity: 5 to 95% non-condensing
  • Environmental Protection: IP65
