GUARDIAN TM850
High-Throughput Radiation Portal Monitor for Large Trucks and Rail
The versatile Guardian™ TM850 radiation detection portal is ideal for inspecting large vehicles and rail cargo. Capable of high-speed throughput, the TM850 detects both gamma and neutron radiation.

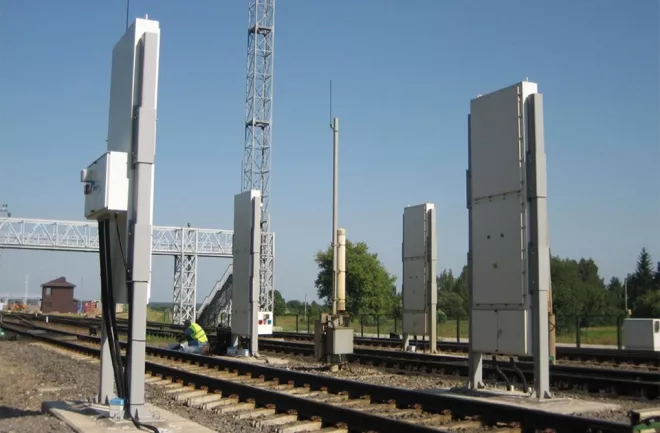

Guardian TM850 - Radiation Portal Monitor
FEATURES
Large vehicle and rail portal monitor
Automated inspection operation
Remote monitoring for centralized oversight and data storage
Adjustable pillar height and spacing to accommodate site-specific requirements
Programmable detection parameters allow for customization to meet the needs of specific applications
Physical Specifications
- Operating Configuration: Drive-through vehicle or rail cargo monitor
- Pillars: Primary and secondary
- Number of Gamma Detectors: 4 detectors; 2 per panel
- Gamma Detector Material: Polyvinyltoluene (PVT) plastic scintillator
- Panel Dimensions on Stands: 160 in H x 63 in W x 10 in D (406 cm H x 160 cm W x 25 cm D)
- Panel Weight: 1,600 lbs (725 kg)
Performance Specifications
- Special Nuclear Materials (SNM) Detection: 200 g HEU or 3 g Pu-239
- Gamma False Alarm Rate: Less than 1 in 1,000 passages
Operation
- Inspection Speed: 5 mph (8 km/h)
- Ports: RS232, Ethernet
Environment / Safety
- Temperature: -29 °F to 122 °F (-34 °C to 50 °C)
- Humidity: 5 to 95% non-condensing
- Environmental Protection: IP65
